Overview

Heat conduction in a 2D fin, on a Gmsh mesh.

This page demonstrates solving the 2D heat conduction fin problem using a Gmsh-generated mesh. Gmsh is a powerful mesh generation tool that can create complex geometries and meshes for finite element analysis. For the mathematical formulation and theory, see the basic tutorial.

Gmsh file import

This example demonstrates how to import a Gmsh-generated mesh (.msh file format) and solve a heat conduction problem.

<body>
  <!-- ...body region... -->
  <script type="module">
    import {
      FEAScriptModel,
      importGmshMesh,
      plotInterpolatedSolution,
      version,
    } from "https://core.feascript.com/dist/feascript.esm.js";

    window.addEventListener("DOMContentLoaded", async () => {
      console.log("FEAScript version:", version);

      // 1. Create the model and select the physics
      const model = new FEAScriptModel();
      model.setModelConfig("heatConduction", { solver: { method: "lusolve" } });

      // 2. Load the Gmsh mesh (.msh format version 4.1)
      const response = await fetch("./rect_quad_quadratic.msh");
      if (!response.ok) {
        throw new Error(`Failed to load the mesh file: ${response.status} ${response.statusText}`);
      }
      const meshFile = new File([await response.text()], "rect_quad_quadratic.msh");
      const mesh = await importGmshMesh(meshFile);
      model.setMesh(mesh);

      // 3. Apply the boundary conditions, keyed by the names of the Gmsh physical groups
      model.addBoundaryCondition("bottom", { type: "constantTemperature", temperature: 200 }); // Bottom
      model.addBoundaryCondition("left", { type: "symmetry" });                                // Left
      model.addBoundaryCondition("top", { type: "convection", h: 1, ambientTemperature: 20 }); // Top
      model.addBoundaryCondition("right", { type: "constantTemperature", temperature: 200 });  // Right

      // 4. Solve
      const result = model.solve();

      // 5. Plot the results
      plotInterpolatedSolution(model, result, "contour", "resultsCanvas");
    });
  </script>
  <!-- ...rest of body region... -->
</body>

Important notes about the Gmsh workflow:

  • Physical Groups in Gmsh: In your .geo file (see Example Gmsh .geo File), you need to define physical groups for boundaries using commands like Physical Line("bottom", 1) = {1};. Give each group a name: it becomes the name of the boundary in FEAScript.
  • Boundary conditions by name: the boundary conditions are keyed by the names of the physical groups, for example model.addBoundaryCondition("bottom", { type: "constantTemperature", temperature: 200 }); for Physical Line("bottom", 1). The tag minus one, the key of FEAScript 0.3, still works with a deprecation warning.

You can create your own Gmsh files by writing .geo scripts or using Gmsh's GUI. For this example, we used a simple rectangular domain defined in a .geo file with specific physical groups for each boundary.

Example Gmsh .geo file

Below is the rect.geo file used in this tutorial. It defines a 4 m × 2 m rectangular domain with a physical line for each boundary edge:

rect.geo
// 2D rectangle: 4 m (width) x 2 m (height)
// Generate the mesh with: gmsh rect.geo -2 -format msh41 -o rect_quad_quadratic.msh

// 1. Mesh size
lc = 0.7; // Characteristic length

// 2. Points (x, y, z, mesh size)
Point(1) = {0, 0, 0, lc}; // Bottom left
Point(2) = {4, 0, 0, lc}; // Bottom right
Point(3) = {4, 2, 0, lc}; // Top right
Point(4) = {0, 2, 0, lc}; // Top left

// 3. Lines and surface
Line(1) = {1, 2};            // Bottom
Line(2) = {2, 3};            // Right
Line(3) = {3, 4};            // Top
Line(4) = {4, 1};            // Left
Line Loop(1) = {1, 2, 3, 4}; // Closed boundary
Plane Surface(1) = {1};      // Domain

// 4. Physical groups: FEAScript keys the boundary conditions by these names
Physical Line("bottom", 1) = {1};    // FEAScript boundary "bottom"
Physical Line("left", 2)   = {4};    // FEAScript boundary "left"
Physical Line("top", 3)    = {3};    // FEAScript boundary "top"
Physical Line("right", 4)  = {2};    // FEAScript boundary "right"
Physical Surface("domain", 5) = {1}; // Domain

// 5. Mesh
Recombine Surface{1};  // Quadrilaterals instead of triangles
Mesh.ElementOrder = 2; // Quadratic elements
Mesh 2;

Note how the names of the physical lines in the .geo file are the keys of the boundary conditions in our FEAScript code. They are the same names as the sides of the rectangle in the basic fin tutorial, so the conditions are written the same way:

  • Physical Line("bottom", 1) = {1}; → model.addBoundaryCondition("bottom", { type: "constantTemperature", temperature: 200 });
  • Physical Line("left", 2) = {4}; → model.addBoundaryCondition("left", { type: "symmetry" });
  • Physical Line("top", 3) = {3}; → model.addBoundaryCondition("top", { type: "convection", h: 1, ambientTemperature: 20 });
  • Physical Line("right", 4) = {2}; → model.addBoundaryCondition("right", { type: "constantTemperature", temperature: 200 });

To generate a mesh file from this .geo script, you would run: gmsh rect.geo -2 -format msh41 -o rect_quad_quadratic.msh in your terminal, which creates the rect_quad_quadratic.msh file that can be imported into FEAScript.

FEAScript also supports triangular elements. To use them, remove the Recombine Surface{1}; line so that Gmsh keeps the triangles. Set Mesh.ElementOrder to 1 for linear or 2 for quadratic elements; FEAScript detects the mesh dimension and element order from the imported mesh, so setMesh needs nothing else.

Generated mesh

Below is a visualization of the quadrilateral mesh generated with Gmsh. The mesh consists of 30 elements.

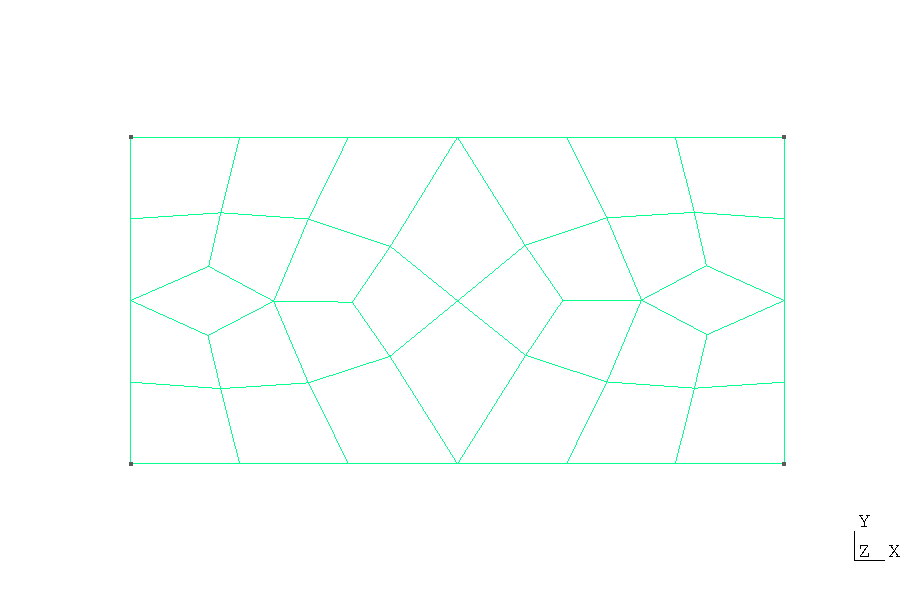

Quadrilateral mesh generated by Gmsh

Quadrilateral mesh (rect_quad_quadratic.msh) generated using the rect.geo script with Gmsh

The unstructured mesh approach would be particularly advantageous for complex geometries, where the mapped mesh approach could not be applied effectively.

Results

Below is the 2D contour plot of the computed temperature distribution. This plot is generated in real time using FEAScript. Please note that solutions computed on unstructured meshes like this may exhibit small numerical differences compared to solutions on structured orthogonal meshes. This occurs because derivative calculations in non-orthogonal elements are inherently less precise due to the Jacobian transformation process. These small differences are expected and acceptable for most engineering applications, but may be noticeable in regions with steep temperature gradients.

See also here for a variation with a rhomboid fin, and the fin on a triangle mesh generated by FEAScript itself, without a mesh file. For a flow problem on a Gmsh mesh of quadratic triangles, see creeping flow through a 2D pillar array.
